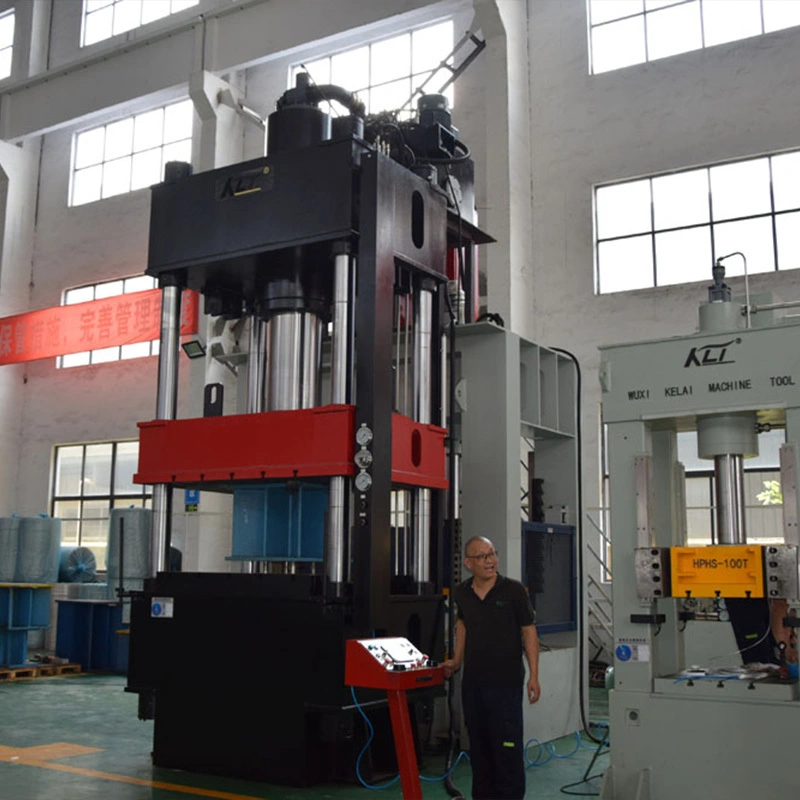

Y32 Universal four-column hydraulic press

ไม่จำเป็น

● Safety light curtain protection device

● Mold heating device (heating board, heat insulation board, temperature controller)

● Floating guide-way and rolling bracket for die exchange

● Mold fast clamping mechanism

● Touch the industrial display screen to control the displacement sensor of the cylinder, the pressure display

● Hydraulic oil temperature heating, cooling device, oil level temperature sensing device

● Servo hydraulic numerical control system controls stroke, pressure and speed (servo hydraulic machine)

● Export CE high standard requirements machine

    Ой ...!

    Нет данных о продукте.

    перейдите на домашнюю страницу

    PRODUCT FEATURE


    1. Three-beam four-column structure


    2. Plug-in valve control to improve efficiency


    3. Able to realize constant pressure and fixed stroke process


    4. Efficient water cooling device to meet continuous production

    3 (15)

    PRODUCT Application


    This series of hydraulic presses are suitable for various stamping processes such as stretching, bending, forming, blanking, flanging, etc., and are particularly suitable for the following fields: 1. Auto parts: body panels, brake pads, fuel tanks, chassis, bridge housings, bumpers; 2. Household appliances: washing machine parts, rice cooker parts, TV parts, refrigerator parts, etc.; 3. Kitchen utensils: sinks, pots, stainless steel utensils, and other various containers.

    DSC_0051

    产品参数

    Type Item

    单元

    40T

    63T

    100T

    160T

    200T

    315T

    400T

    500T

    630T

    1000T

    1250T

    1600T

    2000T

    Nominal pressure

    KN

    400

    630

    1000

    1600

    2000

    3150

    4000

    5000

    6300

    10000

    12500

    16300

    20000

    Ejecting force

    KN

    63

    100

    200

    250

    400

    630

    630

    1000

    1000

    1000

    1000

    1200

    2000

    最大限度。 Working pressure of fluid

    兆帕

    25

    25

    26.2

    26

    25

    25

    25

    26

    26

    26

    26

    26

    27

    Slider stroke

    毫米

    400

    500

    500

    500

    700

    800

    800

    900

    900

    900

    900

    900

    1400

    最大限度。 opening height

    毫米

    600

    700

    900

    900

    1120

    1250

    1400

    1500

    1500

    1500

    1500

    1600

    1600

    表大小

    F.B.

    毫米

    400

    500

    580

    800

    900

    1200

    1200

    1400

    1500

    1600

    1600

    1600

    2000

    L.R.

    毫米

    400

    500

    710

    800

    900

    1200

    1260

    1400

    1500

    1600

    1800

    2000

    2800

    Ejecting stroke

    毫米

    120

    160

    200

    200

    250

    300

    300

    300

    400

    400

    400

    450

    450

    Speed of slider

    Idle stroke

    毫米
    /s

    40

    76

    100

    100

    100

    >100

    >100

    >100

    >100

    >100

    >100

    >100

    >100

    Pressing

    毫米
    /s

    10

    10

    8-15

    8-15

    8-15

    8-15

    8-15

    10

    10

    12

    15

    10

    10

    返回

    毫米
    /s

    60

    60

    60

    60

    70

    70

    70

    80

    65

    80

    80

    75

    >75

    Power of motor

    KW

    5.5

    5.5

    7.5

    15

    18.5

    22

    22

    37

    45

    68

    75

    90

    134

    外形尺寸

    F.B.

    毫米

    1000

    1100

    1200

    1600

    2120

    2220

    2220

    2420

    2520

    3000

    3800

    4000

    3500

    L.R.

    毫米

    1484

    1900

    2076

    2650

    2780

    3440

    3440

    4100

    4390

    2340

    5250

    5800

    5900

    Above floor

    毫米

    2406

    2430

    3300

    3350

    3690

    3900

    4050

    5348

    5600

    5800

    6000

    6500

    8000

    总重量

    T

    1.95

    2.5

    4

    7

    12

    15

    20

    30

    38

    48

    60

    85

    145
