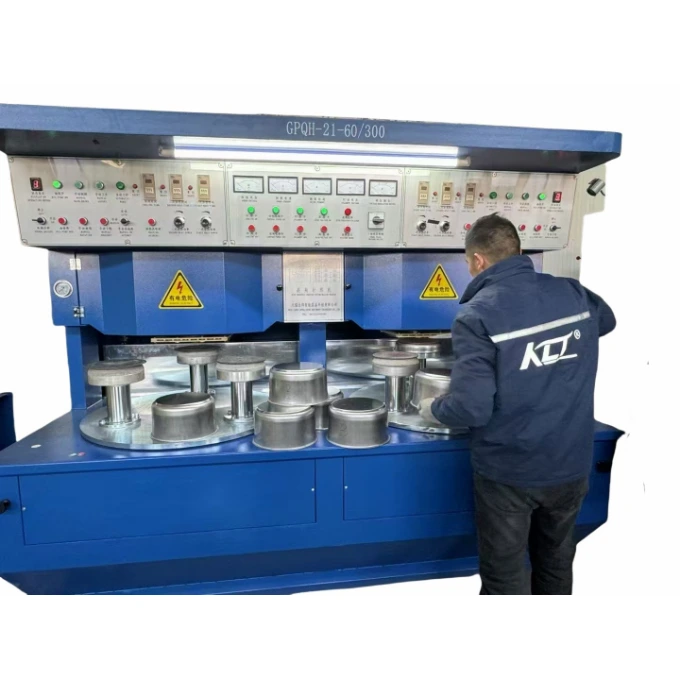

KLT 100KW Transistor Cookware Bottom Brazing Machine
KLT 100KW Transistor Cookware Bottom Brazing Machine is mainly used for cookware composite bottom welding of stainless steel/copper/aluminium pan, pot, kettle, and also can be used for plane heating of other workpiece. Cookware Pan and pot bottom brazing machine is an mechanical, hydraulic and electrical integrated equipment, controlled by several sets microcomputer. The main performance indicators takes the leading status at home and aboard.
Product Description
100KW Transistor Cookware Bottom Brazing Machine is mainly composed by the following three parts
Product parameters
|
Model |
GPQH-21-100/400 |
|
Function part |
Composite metal pot bottom pressure induction heating welding |
|
Component part |
Operation table, Power system, Water cooling system |
|
Size of work-piece |
100-380mm |
|
Power |
100kw, 200-300KHz, 380V |
|
Induction head |
2pcs |
|
Dimension |
2650x2400x2000mm（L×W×H） |
|
weight |
About 3 T |
product video
