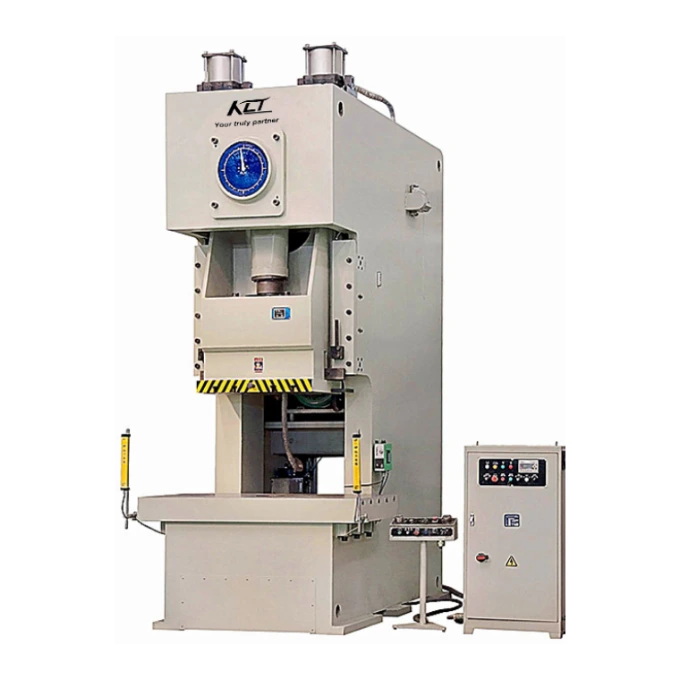

JH21 Series C-Type High Performance Press with Fixed Bed

Universal high performance presses are widely used in the fields of aeronautics, auto, agriculture machines, electric machines, apparatuses and meters, medical equipments, electrical home appliance and hardware.

    oops...!

    no product data.

    Go to homepage

    PRODUCT FEATURE


    1. Welded frame with quality steel which means good rigidity.
    2. Square figure long guide with six friction faces makes abrasion resistant and punching precision.
    3. Hydraulic overload protector has sensitive response and reliable motion, which can protect the die when overloading.
    4. Combined pneumatic clutch and brake are made of friction material, which means long service life.
    5. Closed gear-driven, dipped in lube, which drives stably with low noise.
    6. Slide with counter balancer, which will eliminate the clearance and improve the stability and precision.
    7. Intermittent auto lubrication makes every point get fine and safe lubrication. Thus, long service life is saved.
    8. PLC electric control system is safe and reliable
    9. Air cushion, photo guard, auto feeder and speed die changing are optional.
    undefined

    Product Specification

    Item

    Unit

    JH21-25

    JH21-40

    JH21-63

    JH21-80

    JH21-100

    JH21-125

    JH21-160

    JH21-200

    Nominal Pressure

    KN

    250

    400

    630

    800

    1000

    1250

    1600

    2000

    Nominal Pressure Stroke

    mm

    3

    4

    4

    4.5

    5

    5

    6

    6

    Slide Stroke

    mm

    80

    100

    120

    130

    140

    150

    160

    160

    No. of Strokes per minute

    Fixed

    SPM

    100

    85

    60

    60

    50

    50

    50

    50

    Variable

    SPM

    70-110

    50-95

    45-75

    40-70

    30-60

    30-60

    30-60

    35-60

    Max. die Height

    mm

    250

    270

    300

    330

    350

    380

    400

    450

    Die Height Adjustment

    mm

    50

    60

    70

    80

    90

    90

    110

    110

    Throat Depth

    mm

    210

    225

    260

    310

    360

    370

    380

    400

    Bolster Surface Size

    F.B.

    mm

    400

    440

    500

    600

    680

    700

    740

    780

    L.R.

    mm

    700

    810

    850

    1000

    1100

    1200

    1300

    1400

    Slide Surface  Size

    F.B.

    mm

    250

    340

    400

    460

    520

    520

    580

    590

    L.R.

    mm

    360

    410

    480

    540

    630

    630

    800

    800

    Stemhole

    mm

    φ40X50

    Φ40x65

    φ50X65

    φ50X80

    φ50X85

    φ50X85

    φ65X90

    Φ65x90

    Distance between Uprights

    mm

    450

    530

    580

    600

    630

    680

    780

    820

    Thickness of Bolster

    mm

    80

    110

    130

    140

    155

    160

    165

    170

    Optional  Cushion

    Pressure

    KN



    45

    60

    80

    100

    100

    145

    145

    Stroke

    mm



    50

    50

    65

    70

    70

    80

    80

    Main Motor

    Model



    Y100L2-4

    Y112M-4

    Y132S-4

    Y132M-4

    Y132M-4

    Y160M-4

    Y160L-4

    Y180M-4

    Power

    KW

    3

    4

    5.5

    7.5

    7.5

    11

    15

    18.5

    Slide Motor

    Model









    YPE500-4Z

    YPE500-4Z

    YPE500 -4Z

    YPE750 -4Z

    YPE750-4Z

    Power

    KW







    0.5

    0.5

    0.5

    0.75

    0.75

    Overall Dimension

    F.B.

    mm

    1365

    1410

    1580

    1774

    1830

    2076

    2120

    2250

    L.R.

    mm

    857

    990

    1080

    1186

    1325

    1380

    1510

    1540

    Height

    mm

    2180

    2320

    2555

    3085

    3010

    3084

    3300

    3380

    Gross Weight

    Kg

    2800

    4200

    5700

    6900

    10350

    11800

    13500

    17500
