Product Introduction
Product Introduction

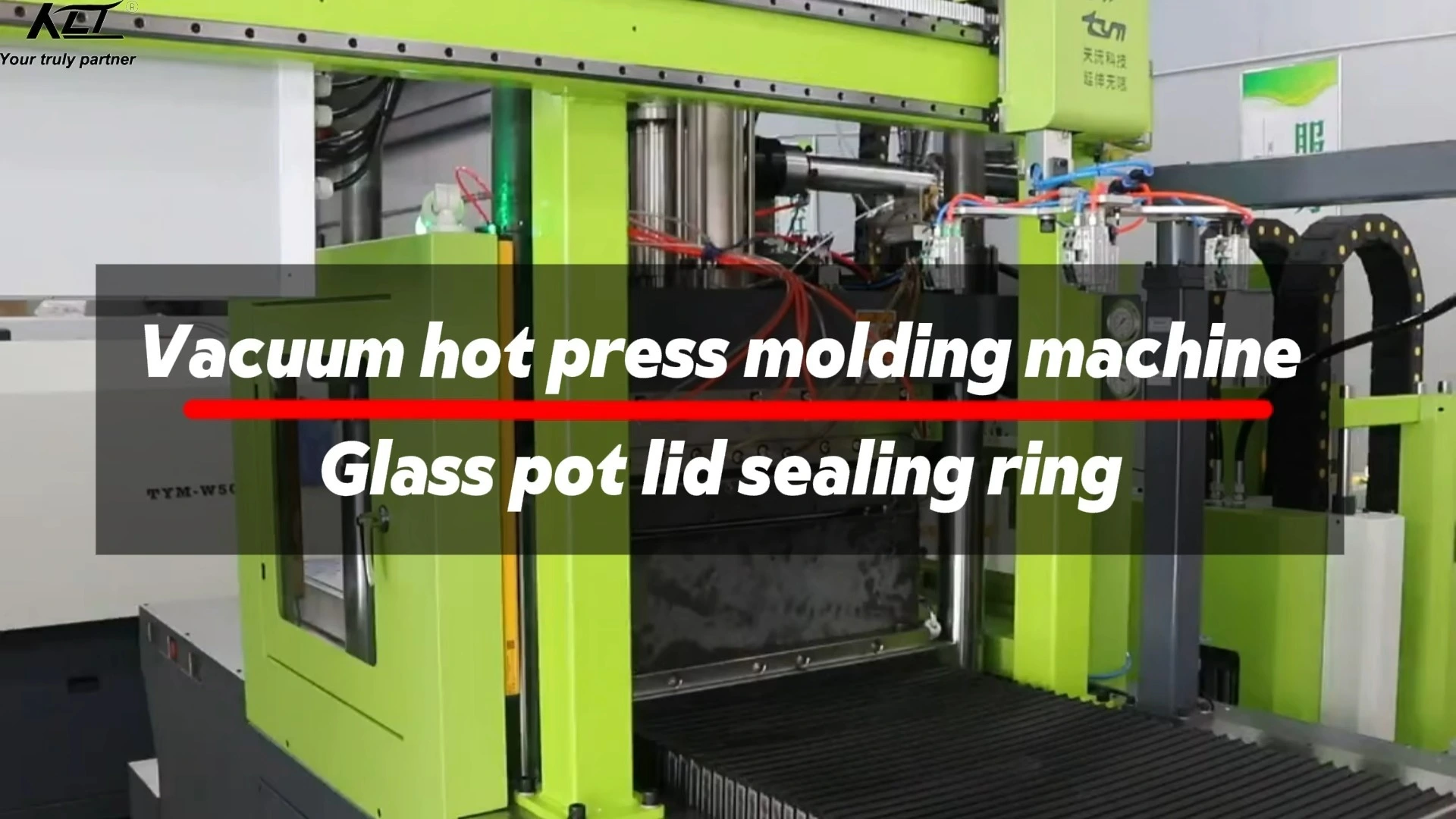

The fully automatic vacuum vulcanizer is a highly automated equipment specially used for manufacturing rubber sealing rings. It is widely used in the production of sealing rings for pot lids. The vacuum environment ensures the high air tightness and high temperature resistance of the sealing ring. In the manufacturing of sealing rings for pot lids, this equipment is specially optimized for silicone rubber materials. When processing accessories such as O-rings or gaskets, it can efficiently form a uniform structure, enhance sealing and durability, and is suitable for kitchen utensils such as pressure cookers.
PRODUCT ADVANTAGE
1. Efficient production capacity design: supports continuous operation, significantly shortens production cycle and increases output per unit time.
2. Precise process control: automatically adjusts temperature, pressure and vacuum through PLC to ensure stable vulcanization process, thereby improving sealing and durability.
3. Strong material compatibility: specially optimized for silicone rubber, combined with vacuum environment treatment, ensures that the sealing ring has excellent high temperature resistance, chemical inertness and environmental protection and non-toxic properties, suitable for high-demand scenarios such as pressure cookers.
4. Automation and energy-saving features: integrated intelligent control system reduces manual intervention, while energy consumption monitoring module optimizes power usage, reduces operation and maintenance costs and supports green production.
Product Application
Suitable For All Rubber And Silicone Products
Product Specification
Type |
200T |
250T |
300T |
350T |
Clamping force(Ton) |
200 |
250 |
300 |
350 |
Stroke(mm) |
300 |
300 |
300 |
300 |
Hot plate diameter(mm) |
300-430 |
300-430 |
300-430 |
300-430 |
Working plateform(mm) | 360 | 400 | 450 | 475 |
Vacuum chamber travel(mm) |
200 |
200 |
200 |
300 |
Horse power(kw) |
9.5 |
9.5 |
9.5 |
11 |
Weight(kg) |
4500 |
5700 |
6750 |
8300 |
