Kelai: ligne de production de cuisine de cuisine, fabricant de machines de fabrication de cuisine depuis la Chine

YH27 Series H frame CNC Forming hydraulic press 1
YH27 Series H frame CNC Forming hydraulic press 2
YH27 Series H frame CNC Forming hydraulic press 1
YH27 Series H frame CNC Forming hydraulic press 2

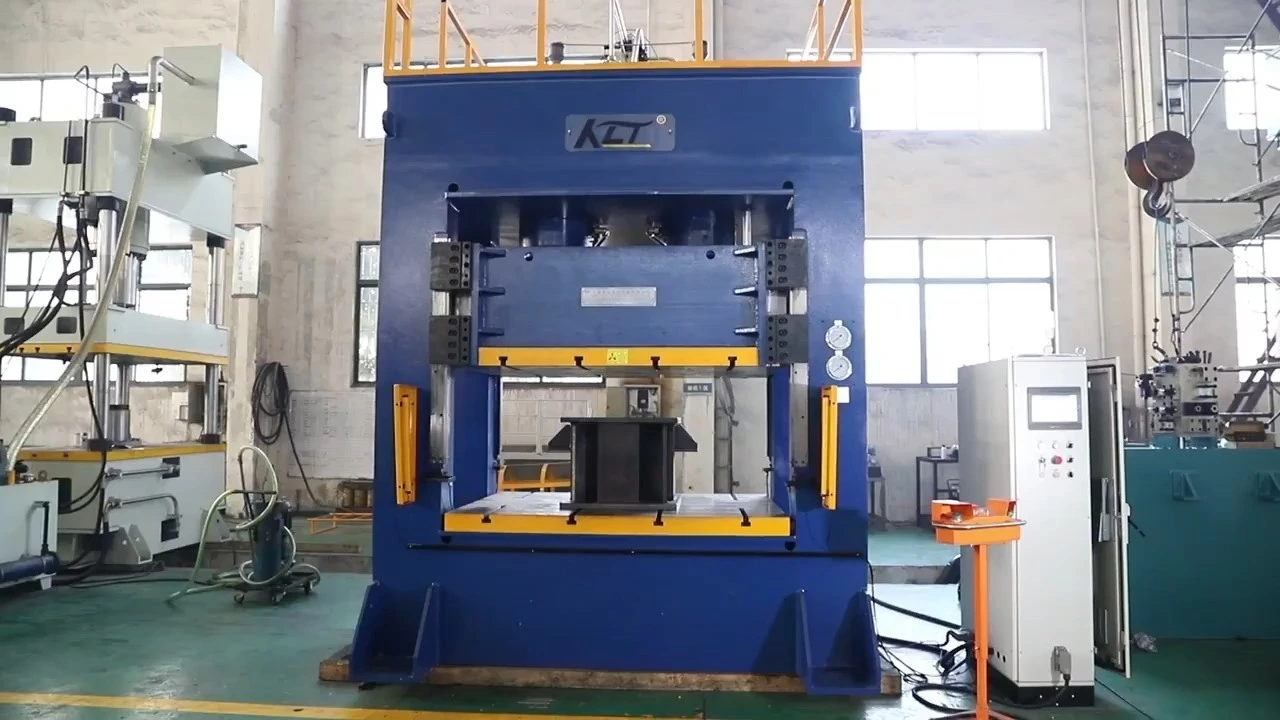

YH27 Series H frame CNC Forming hydraulic press

This series of hydraulic presses are suitable for various stamping processes such as stretching, bending, forming, blanking, flanging, etc., and are particularly suitable for the following fields: 1. Auto parts: body panels, brake pads, fuel tanks, chassis, bridge housings, bumpers; 2. Household appliances: washing machine parts, rice cooker parts, TV parts, refrigerator parts, etc.; 3. Kitchen utensils: sinks, pots, stainless steel utensils, and other various containers.

    Oops...!

    Aucune donnée de produit.

    aller à la page d'accueil

    PRODUCT FEATURE


    1. High efficiency and energy saving, the power consumption is 30% -50% less energy than ordinary motors.

    2. Low noise, the noise can be controlled at about 60 decibels.

    3. The working position, speed and pressure can be adjusted steplessly.

    4. Quick response, high pressure and position repeat accuracy.

    5. High efficiency, multiple protections inside, and extremely low failure rate.

    6. 12 hours of continuous work without cooling oil temperature.

    7. Pipes and joints adopt SEA international standards to prevent pipeline oil leakage.

    8. Adopt button centralized control, (fixed distance / constant pressure) two control methods, (adjustment / automatic) two operation methods

    9. European CE standard hydraulic system and electrical appliance safety IP54 level.

    YH27

    PRODUCT APPLICATION

    Auto parts: body panels, brake pads, fuel tanks, chassis, bridge housings, bumpers;


    Household appliances: washing machine parts, rice cooker parts, TV parts, refrigerator parts, etc.;


    Kitchen utensils: sinks, pots, stainless steel utensils, and other containers.

    YH27-1

    产品规格

    描述

    单元

    100T

    200T

    315T

    500T

    630T

    1000T

    1500T

    2000T

    Nominal Force

    KN

    1000

    2000

    3150

    5000

    6300

    10000

    15000

    20000

    Pressure of fluid

    兆帕

    25

    25

    25

    25

    25

    25

    25

    25

    Slide Stroke

    毫米

    600

    800

    800

    1200

    1200

    1600

    1600

    2000

    Opening Height

    毫米

    900

    1200

    1200

    1600

    1600

    2000

    2000

    2500

    Ejecting Stroke

    毫米

    150

    170

    180

    180

    180

    200

    220

    250

    Preload Pressure

    KN

    315

    630

    1000

    1500

    2000

    3150

    5000

    6300

    Opening Mould Force

    mm/s

    200

    400

    630

    1000

    1250

    2000

    3150

    4000

    Demould Force

    mm/s

    100

    200

    500

    500

    500

    500

    500

    500

    Down Speed

    mm/s

    200

    200

    200

    200

    200

    300

    300

    300

    工作速度

    mm/s

    1-6

    1-6

    1-6

    1-6

    1-6

    0.5-5

    0.5-5

    0.5-5

    Return Speed

    mm/s

    100

    100

    100

    150

    150

    200

    200

    200

    Preload Speed

    mm/s

    6-25

    6-25

    6-25

    6-25

    6-25

    5-30

    5-30

    5-30

    Opening Mould Speed

    mm/s

    2-25

    2-25

    2-25

    2-25

    2-25

    2-25

    2-25

    2-25

    Demould Speed

    mm/s

    5-30

    5-30

    5-30

    5-30

    5-30

    5-30

    5-30

    5-30

    Table Size

    L.R.

    毫米

    630

    900

    1200

    1400

    1600

    3200

    3200

    3600

    F.B.

    毫米

    630

    900

    1200

    1400

    1600

    2200

    2200

    2500

    Master Pump Power

    KW

    11

    18.5

    30

    45

    75

    110

    180

    230

    重量

    T

    4.2

    12

    22.5

    43.5

    56

    112

    162

    222
